ProGraphics Roll Laminators
EXCELAM-PLUS Cold Series
EXCELAM-PLUS1600COLD/RS
EXCELAM-PLUS1600COLD/RS
EXCELAM-PLUS COLD is the perfect machine for a wide range of services in a copy shop environment or as a print finishing. Ideal for laminating posters, ink-jet prints, leaflets and maps with superb results and for truly professional mounting up to 13mm GMP LAMIFOAM (Foamboard).
Super Cold Laminating results on wide ranges of Cold films from 25micron & 50micron GMP Crystalex Film (Polyester Base Cold Film) Including 75micron & 100 micron GMP Pronex Cold UV Film (Soft Touch Cold Film).

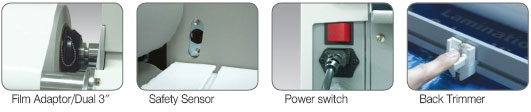

Features:
- High speed Laminating Up to 5m/min
- Strengthen Main Motor for better drive torque and its durability
- Rewinder connected to the powerful main motor
- Top rewinder for releasing liner
- Easy to use for outer rewinder tension control
- Designed for dual film core and stronger unwinder shaft
- Mounting up to 13mm
- Back Trimmer for limited web removal
Specification
| Model | EXCELAM-PLUS1600COLD/RS |
|---|---|
| Max. Laminating Speed | 5m/min |
| Max. Laminating Width | 1600mm |
| Laminating Films | 25mic ~ 500mic |
| Substrate weight | 80g/m2 ~ 350g/m2 |
| Max. Mounting Thickness | 13 mm |
| Front Roller Diameter | 80mm |
| Power Requirements | 220~240V, 50/60Hz |
| Power Consumption | 100W, 0.4A |
| Speed Control | Volume |
| Pressure Adjustment | Manual (lever,6-preset) |
| Film Core | 77mm/Dual |
| Dimensions(WxLxH) | 1840 x 750 x 1200mm |
| Type of Main Motor | DC W-Geard Motor /36V100W-DM012 |
| Type of Rewinder Motor | Link to Main Motor |
| Stand | O |
